Read MPAS files

Purpose

This module can be used to import data from NetCDF files generated by MPAS simulations.

Data Preparation

Files must be in NetCDF format (type classic, 64-bit offset or cdf-5).

The underlying data structure is assumed to be a Voronoi grid.

For dynamic data, data for each timestep must be present in a separate file.

Ports

ReadMpas grid_out grid (grid_out) data_out_0 scalar data (data_out_0) data_out_1 scalar data (data_out_1) data_out_2 scalar data (data_out_2) data_out_3 scalar data (data_out_3) velocity composed cartesian velocity (velocity)

Parameters

name

description

type

first_step

first timestep to read

Int

last_step

last timestep to read (-1: last)

Int

step_increment

number of steps to increment

Int

first_rank

rank for first partition of first timestep

Int

grid_file

File containing the grid

String

zGrid_file_dir

File containing the vertical coordinates (elevation of cell from mean sea level

String

data_file

File containing data

String

part_file

File containing the grid partitions

String

numParts

Number of partitions (-1: automatic)

Int

numLevels

Number of vertical cell layers to read (0: only one 2D level)

Int

bottomLevel

Lower bound for altitude levels

Int

altitudeScale

value to scale the grid altitude (zGrid)

Float

var_dim

Dimension of variables (2D, 3D)

String

Variable_0

Variable_0 ((NONE))

String

Variable_1

Variable_1 ((NONE))

String

Variable_2

Variable_2 ((NONE))

String

Variable_3

Variable_3 ((NONE))

String

u_zonal

u_zonal ((NONE))

String

u_meridional

u_meridional ((NONE))

String

w

w ((NONE))

String

radial_scale

scale radial velocity component with height

Int

cell_mode

grid (based on Voronoi cells, Delaunay trianguelation, or Delaunay projected down) (Voronoi, Delaunay, DelaunayProjected)

Int

Required parameters

File must provide at least the following variables:

  • grid file : Path to a file describing the ground layer (typically retrieved from the MPAS standard mesh sets (‘x1. … .grid.nc’) ).

  • part file : Path to a file containing information on the grid paritioning (typically retrieved from the MPAS standard mesh sets; for N partitions (’ x1. … .graph.info.part.N’) )

Important Optional Parameters

  • data file : Path to a file containing additional variables

  • zGrid file : Path to the file containing the altitude of grid layers

  • var dim : Dimension of variables to be read

  • Variable 0…2 : Name of variables to be read

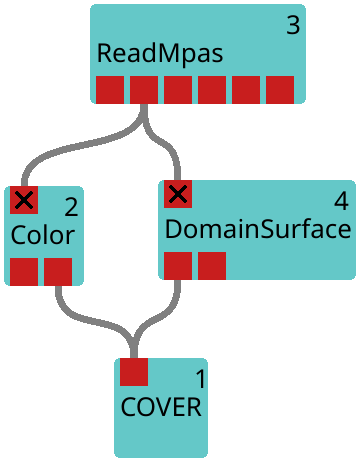

Usage Examples

Build Requirements

This module requires the PnetCDF library.
